1. Introduction

This report provides information about the implementation of the EPBD in Wales. It updates the previous reports published in 2010, 2012 and 2016. The implementation of the EPBD in the other three UK jurisdictions (England, Scotland and Northern Ireland) is addressed in separate reports.

From 31 December 2011, Wales became responsible for its own Building Regulations. Prior to this date, EPBD requirements were implemented across England and Wales with no distinction. Today, the implementation of the EPBD in Wales is shared between the Welsh Government (WG) responsible for Building Regulations, and the UK Ministry of Housing, Communities and Local Government (MHCLG) responsible for the Energy Performance of Buildings Regulations in England and Wales.

This report introduces the Wales-specific requirements. Requirements that are common to England and Wales are detailed in the England report and have not been repeated in this one.

2. Current Status of Implementation of the EPBD

2.I. Energy performance requirements: NEW BUILDINGS

2.I.i. Progress and current status of new buildings (regulation overall performance)

Figures 1 and 2 show simplified historical Building Regulations improvements in Wales for new buildings. The graphs are based on the 2006 Regulations (the reference year), historical improvements for 2010 and 2014, and Government announcements for 2017 and 2020. Note that the 2006 and 2010 Regulations applied across England and Wales, whereas the 2014 Regulations apply to Wales only, following the devolution of powers to the Welsh Government in 2011.

The 2014 amendments to the Building Regulations set energy performance requirements for new and existing buildings¹. The Regulations were strengthened to deliver improved CO₂ savings over the previous Regulations i.e., 8% across new residential buildings and 20% across new non-residential buildings. Changes to existing building requirements were also introduced in 2014. There were also 2016 amendments to clarify the application of the approved calculation methodology².

In 2019, the UK Government passed legislation to commit the UK to a legally binding target of net zero emissions by 2050³.

Within the same year, the Welsh Government consulted on the changes to Part L (conservation of fuel and power) and Part F (ventilation) of the Building Regulations for new residential buildings. Within the consultation, the Government outlined their vision of the future Part L for 2025. This vision includes high fabric standards, a higher specification for glazing, and the use of heat pumps, heat networks, direct electric heating and/ or other technologies⁴.

A review of the Building Regulations’ energy performance requirements (“Part L”) is ongoing. This review will be informed by further consultation and, as a minimum, it will aim to improve energy requirements where necessary to deliver NZEB standards at a cost optimal level or better for all building types, with amendments to the Building Regulations expected to come into force in late 2021/ early 2022. The review will also develop proposals to implement the 2018 amendments to the EPBD (2018/844).

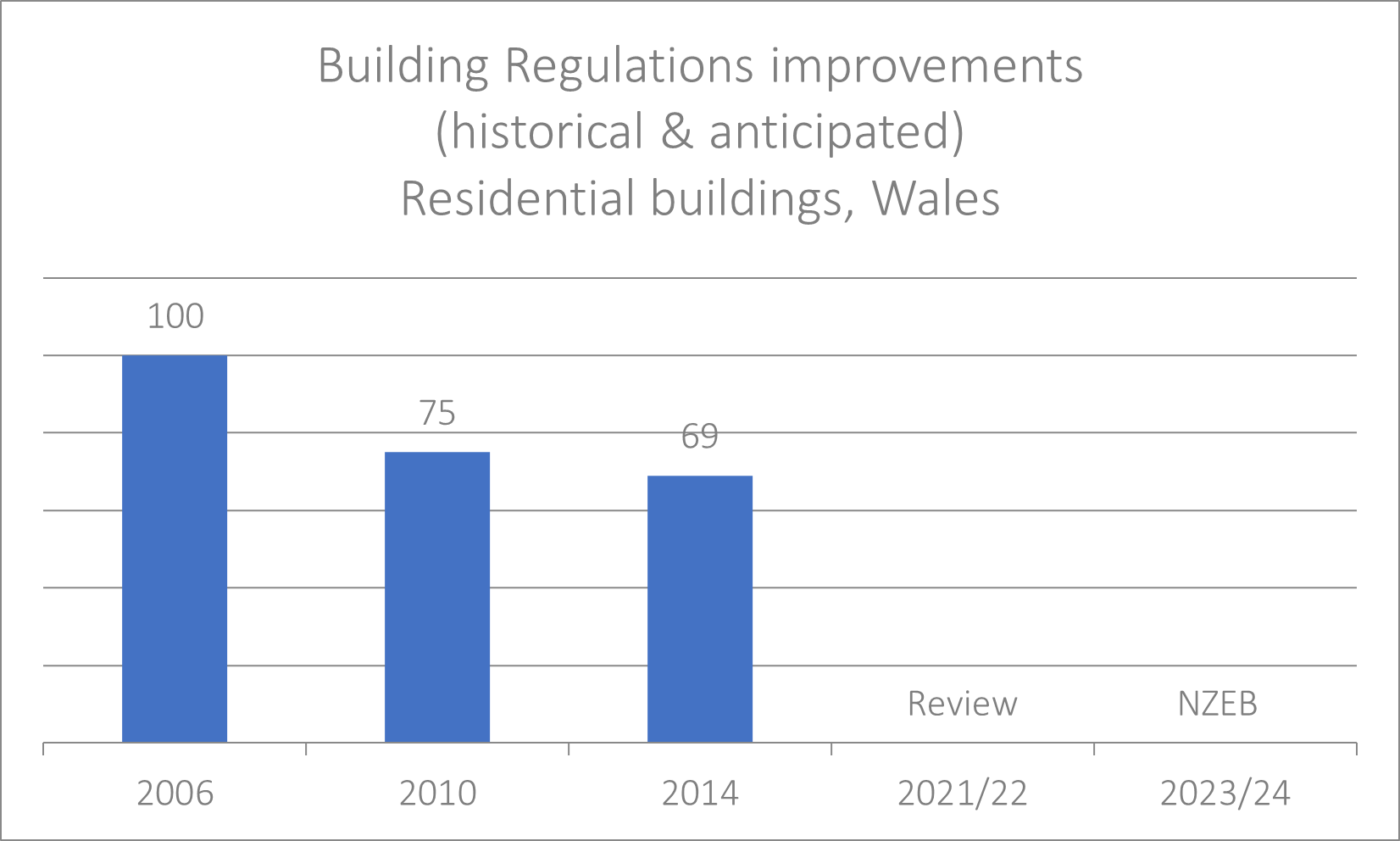

Figure 1. New residential Building Regulations improvements, Wales.

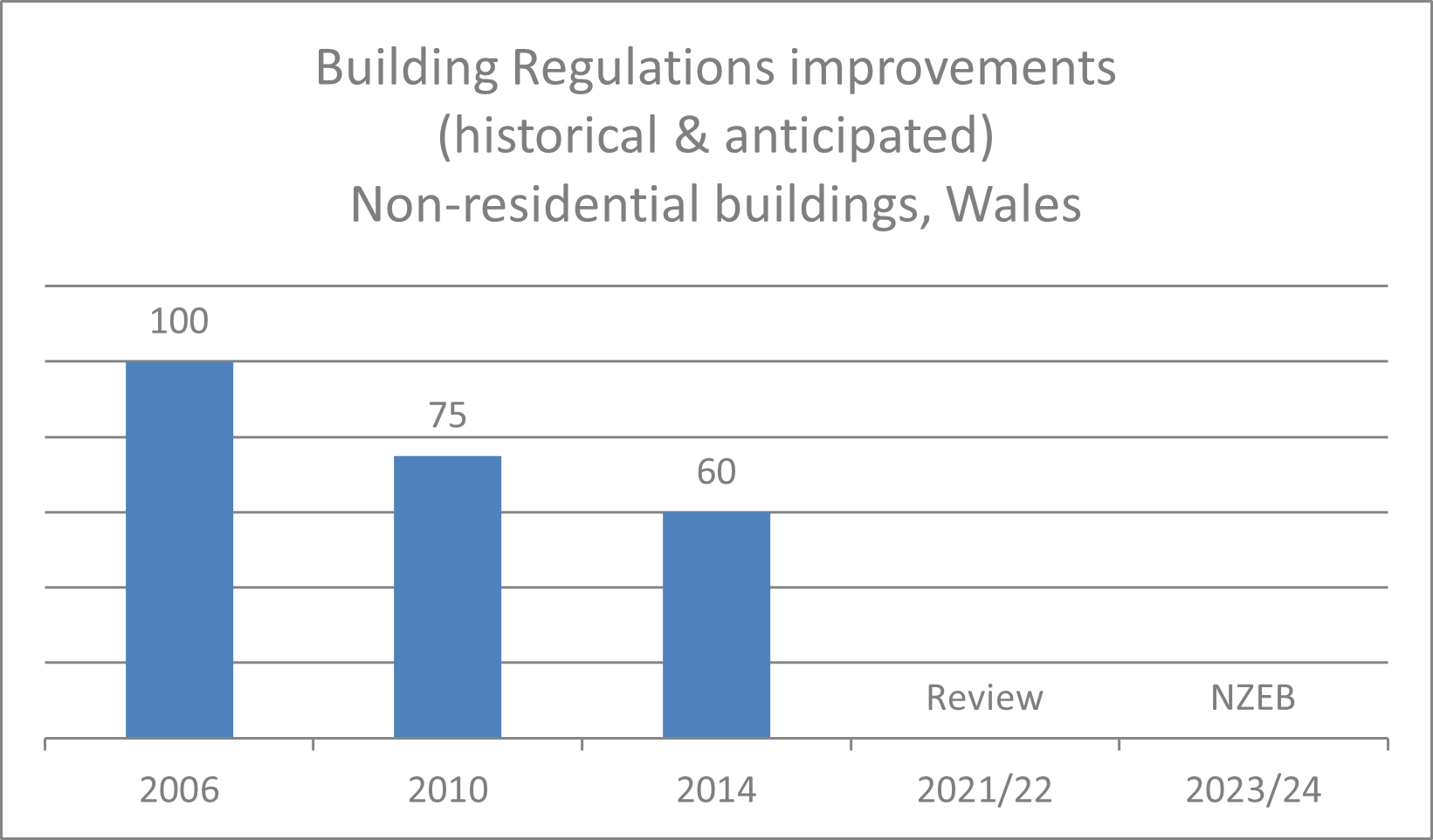

Figure 2. New non-residential Building Regulations improvements, Wales.

2.I.ii. Format of national transposition and implementation of existing regulations

Wales adopted a similar approach to England, i.e., four “Approved Documents” (ADs)⁵ which provide a route to comply with Building Regulations. Five criteria are set for new residential and non‐residential buildings (Table 1).

Table 1. Requirements for new buildings, Wales.

As with England, these requirements are included in the National Calculation Methodology (NCM) and compliance is demonstrated by using Government-approved software. The Welsh Approved Documents allow the use of English Accredited Construction Details (ACDs) to demonstrate compliance. Wales adopted the English ACDs. Figure 3 gives an example. Compliance checks are similar to England, using Building Control Bodies (BCBs) and “Competent Persons”. See England report for details.

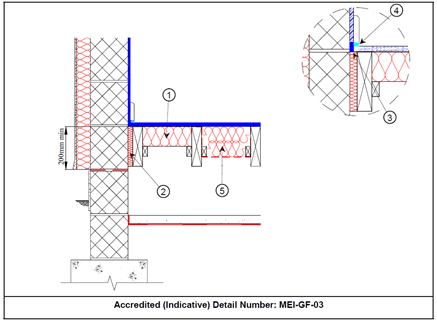

Figure 3. ACD for Timber Suspended Ground Floor. Extracted from ACDs for Masonry External Wall insulation.

Cost-optimal procedure for setting energy performance requirements

A UK‐wide cost‐optimal report, which addresses Wales, was published in January 2019⁶. See England report for details.

2.I.iii. Action plan for progression to NZEB for new buildings

The current Building Regulations incorporate NZEB. Regulation 25B² states: “Where a building is erected, it must be a nearly zero-energy building.” and implementation dates align with the EPBD.

A review of Building Regulations Part L is ongoing. The review is intended to deliver, as a minimum, improvements to energy requirements where necessary to deliver NZEB standards at a cost optimal level or better to all new buildings in late 2021/ early 2022.

National application of the NZEB definition

NZEB statistics are not maintained in Wales. Figure 4 shows historical records of EPCs for energy efficiency ratings A and A+^7,8. The graph shows an upward trend in A rated buildings for non-residential sectors, and a sharp drop in 2015/16 of A rated residential buildings, which levelled out in 2017. Since 2018 there has been a sharp increase in the number of A rated residential buildings. New building construction rates will also affect these data.

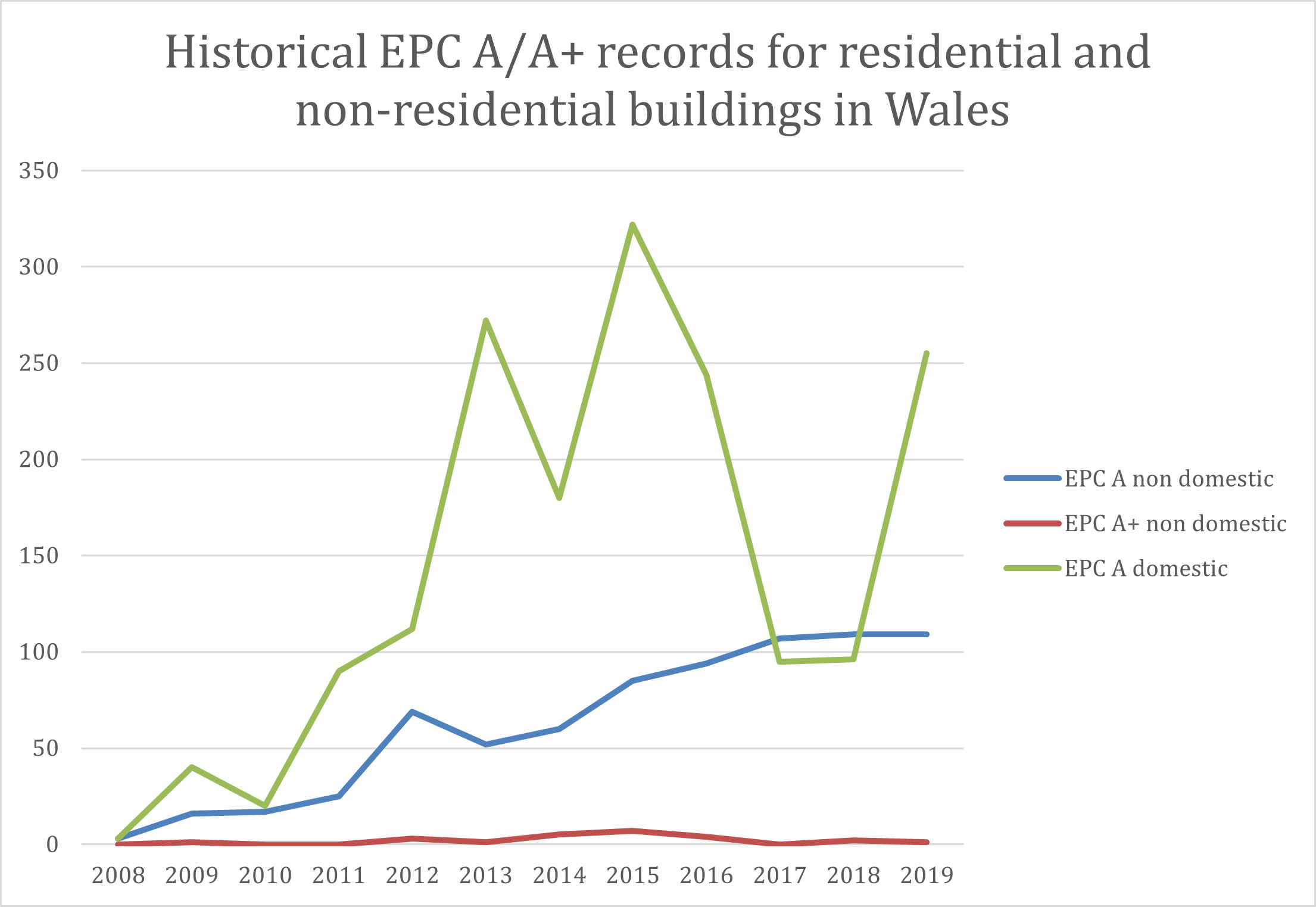

Figure 4. Historical EPC A/A+ records for residential and non-residential buildings in Wales.

2.I.iv. Requirements for building components for new buildings

Please refer to Section 2.I.i. Progress and current status of new buildings for details on building fabric requirements for new buildings.

2.I.v. Enforcement systems new buildings

Enforcement of the requirements of the Building Regulations are similar to England, using Building Control Bodies (BCBs) and “Competent Persons”. See England report for details.

2.II. Energy performance requirements: EXISTING BUILDINGS

Live tables on residential building stock by tenure provide a statistical overview of the UK building stock⁹. See England report for details.

Wales has about 1.4 million homes. Figures 5 and 6 show the distribution of >1,000,000 residential EPCs and >43,000 non-domestic EPCs in Wales. Buildings with no EPCs are not represented.

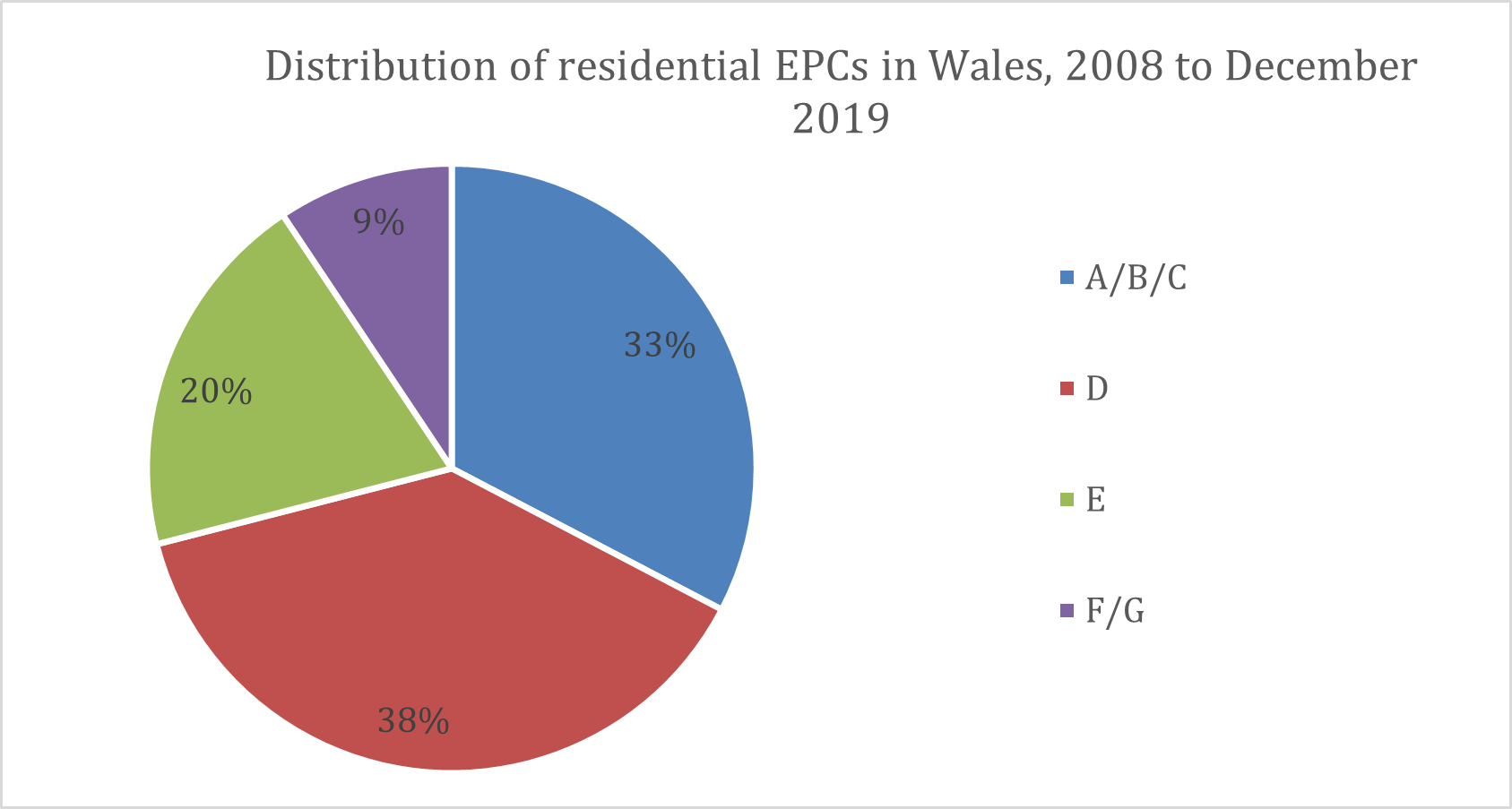

Figure 5. Distribution of residential EPCs in Wales, 2008 to December 2019

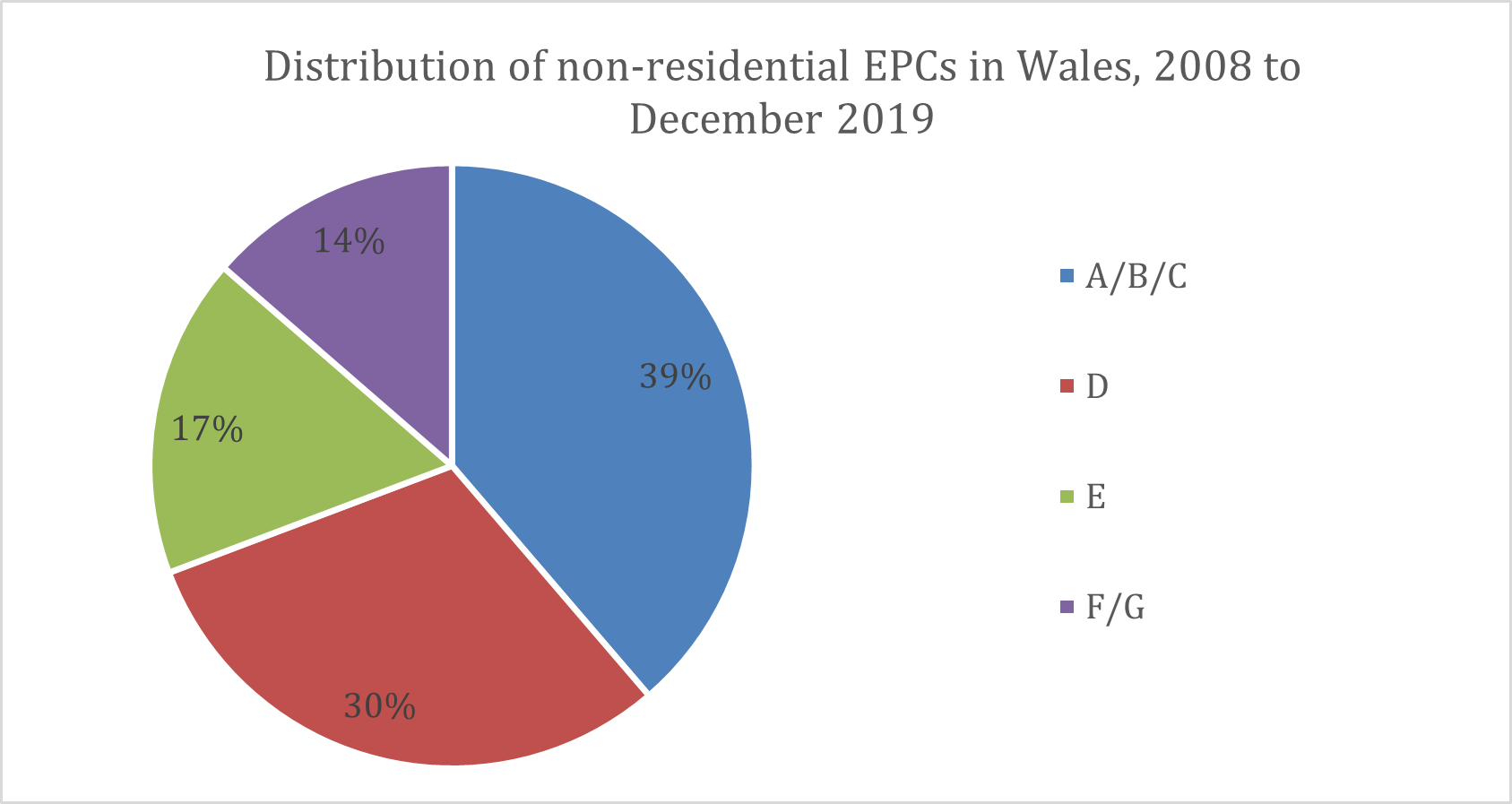

Figure 6. Distribution of non-residential EPCs in Wales, 2008 to December 2019.

2.II.i. Progress and current status of existing buildings (regulation overall performance)

Similarly to England, an elemental approach has been adopted for existing buildings. See England report for details. The 2014 revision of the Building Regulations introduced consequential energy performance improvements to all existing buildings that are extended.

2.II.ii. Regulation on individual parts, distinct from whole building performance

See England report for details.

2.II.iii. Initiatives/plans to improve the existing building stock

The 2014 UK National Energy Efficiency Action Plan¹⁰ includes a Building Renovation Strategy in compliance with EED Article 4¹¹. The Welsh policies and programmes to deliver this strategy include:

• the National Energy Efficiency and Savings Plan (2011)¹²;
• the Fuel Poverty Strategy (2010)¹³;

• “Nest”¹⁴, a fuel poverty scheme delivered as part of the Warm Homes Programme that provides energy efficiency advice, alongside installation of home energy efficiency measures for qualifying properties based on a whole house assessment;

• “Arbed”¹⁵, an area-based scheme delivered as part of the Warm Homes Programme to deliver energy efficiency improvements based on a whole house assessment;

• the availability of an additional funding to leverage investment from the Energy Company Obligation (ECO);

• Building Regulations updates which include consequential improvements for all existing residential and non-residential buildings when extension or renovation work is undertaken.

In 2017, the Welsh Government published an ambition for a carbon neutral Public Sector by 2030¹⁶. In 2019, the UK Government passed legislation to commit the UK to a legally binding target of net zero emissions by 2050.³

2.II.iv. Long Term Renovation Strategies, status

Please see England report.

2.II.v. Financial instruments and incentives for existing buildings

See UK National Energy Efficiency Action Plan⁷ details above.

2.II.vi. Information campaigns / complementary policies

The Welsh Government provides advice to people living in Wales to improve their home energy efficiency. Subject to meeting certain eligibility criteria, people are provided home energy efficiency measures at no cost to the householder, to improve the energy efficiency of their homes. This contributes to the Welsh Government’s efforts to reduce fuel poverty and decarbonise Welsh homes. However, there is evidence that increased benefits could be delivered through an expansion of advice and support services, targeting people struggling to maintain a satisfactory home temperature at an affordable cost. As part of the new plan to tackle fuel poverty, the Welsh Government will implement a pilot scheme to explore how people can be supported to reduce energy demand using smart metering and other measures.

2.III. Energy performance certificate requirements

The Energy Performance of Buildings Regulations apply to both England and Wales. See England report for details.

2.III.i. Progress and current status on EPCs at sale or rental of buildings

Tables 2 & 3 and Figures 7 & 8 provide Wales-specific data.⁶

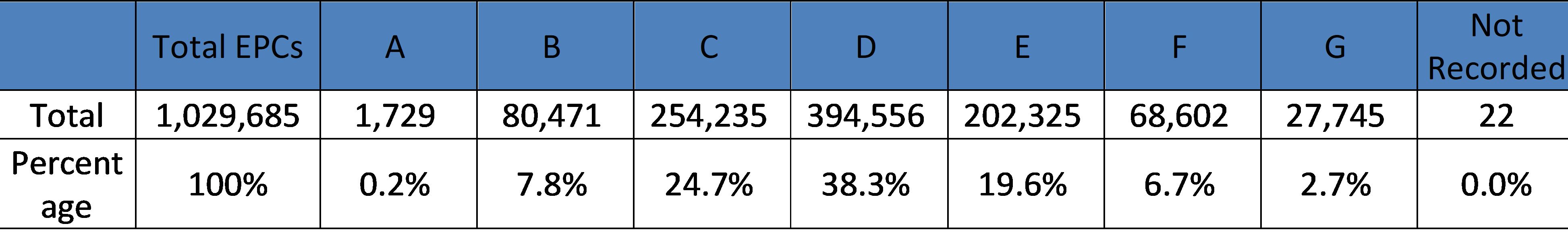

Table 2. Residential EPCs, 2008 to December 2019 Wales.

“not recorded” = faulty EPC (cancelled, withdrawn, etc.)

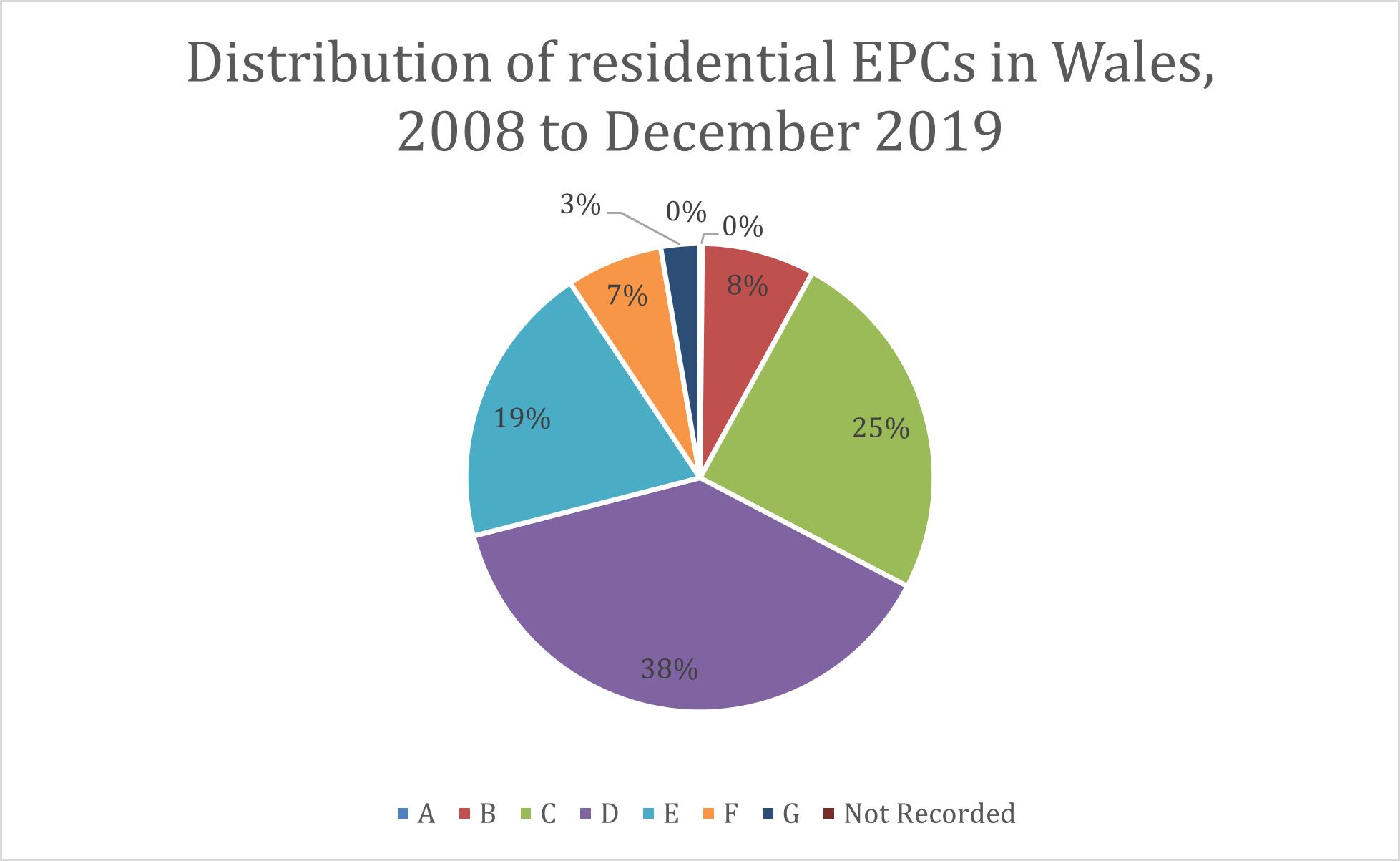

Figure 7. Residential EPCs, 2008 to December 2019, Wales. Percentages by EPC band.

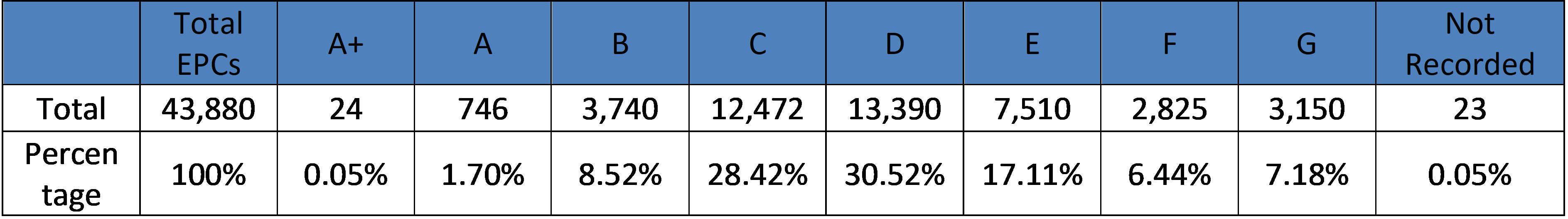

Table 3. Non-residential EPCs, 2008 to December 2019, Wales.

_{“not recorded” = faulty EPC (cancelled, withdrawn, etc.)}

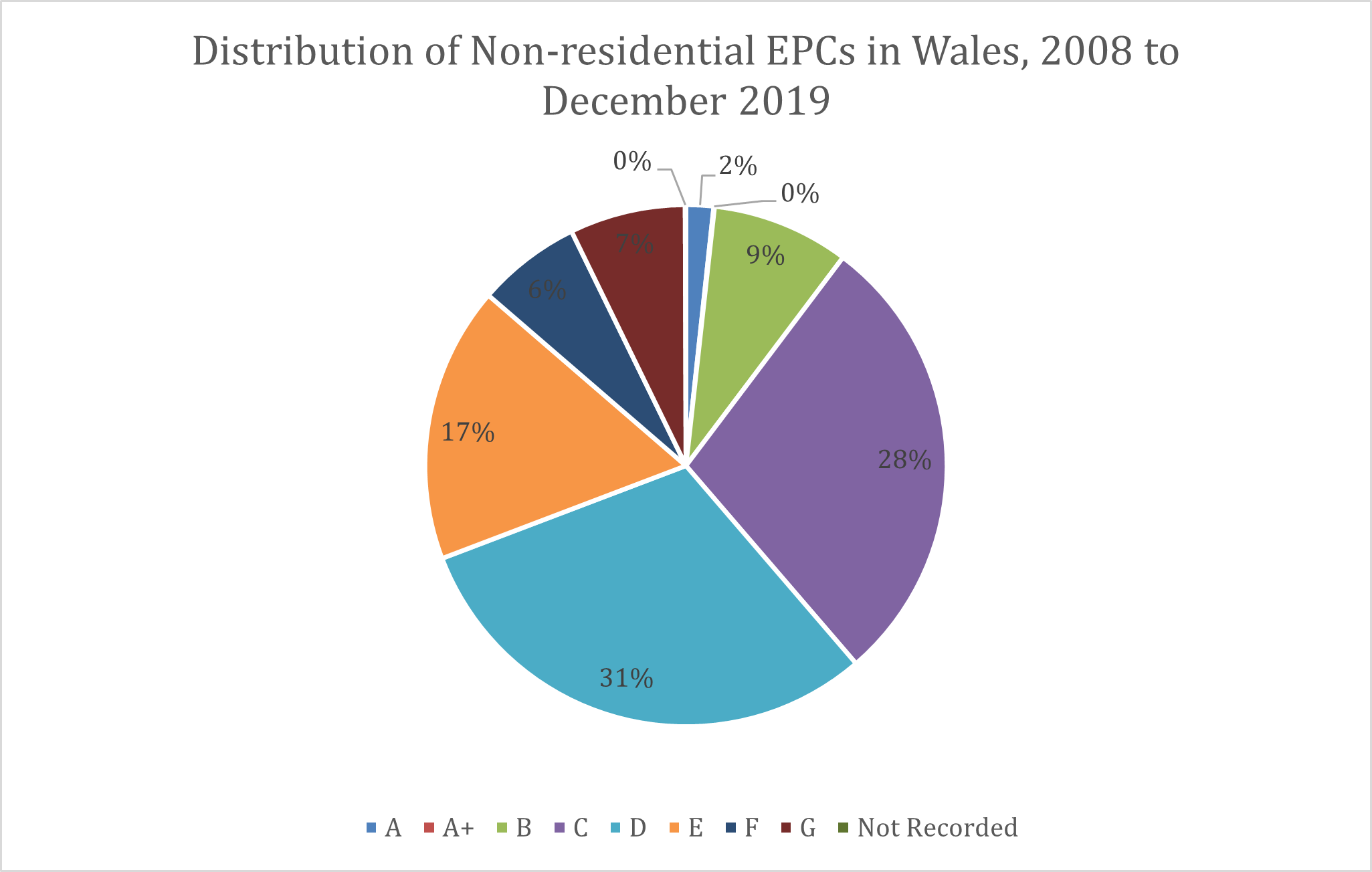

Figure 8. Non-residential EPCs, 2008 to December 2019, Wales. Percentages by EPC band.

2.III.ii. Quality assurance of EPCs

Wales adopted the same approach as England. See England report for details.

2.III.iii. Progress and current status of EPCs on public and large buildings visited by the public

Wales adopted the same approach as England. See England report for details. Display Energy Certificates (DECs) data from 2008 to December 2019 is included in Table 4 and Figure 9.⁶

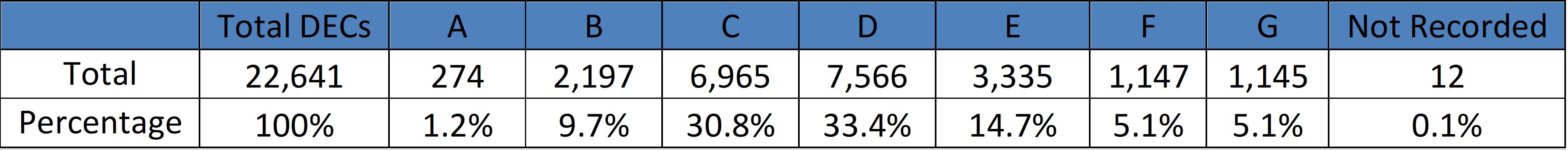

Table 4.  Wales, 2008 to December 2019, Wales.

“not recorded” = faulty EPC (cancelled, withdrawn, etc.)

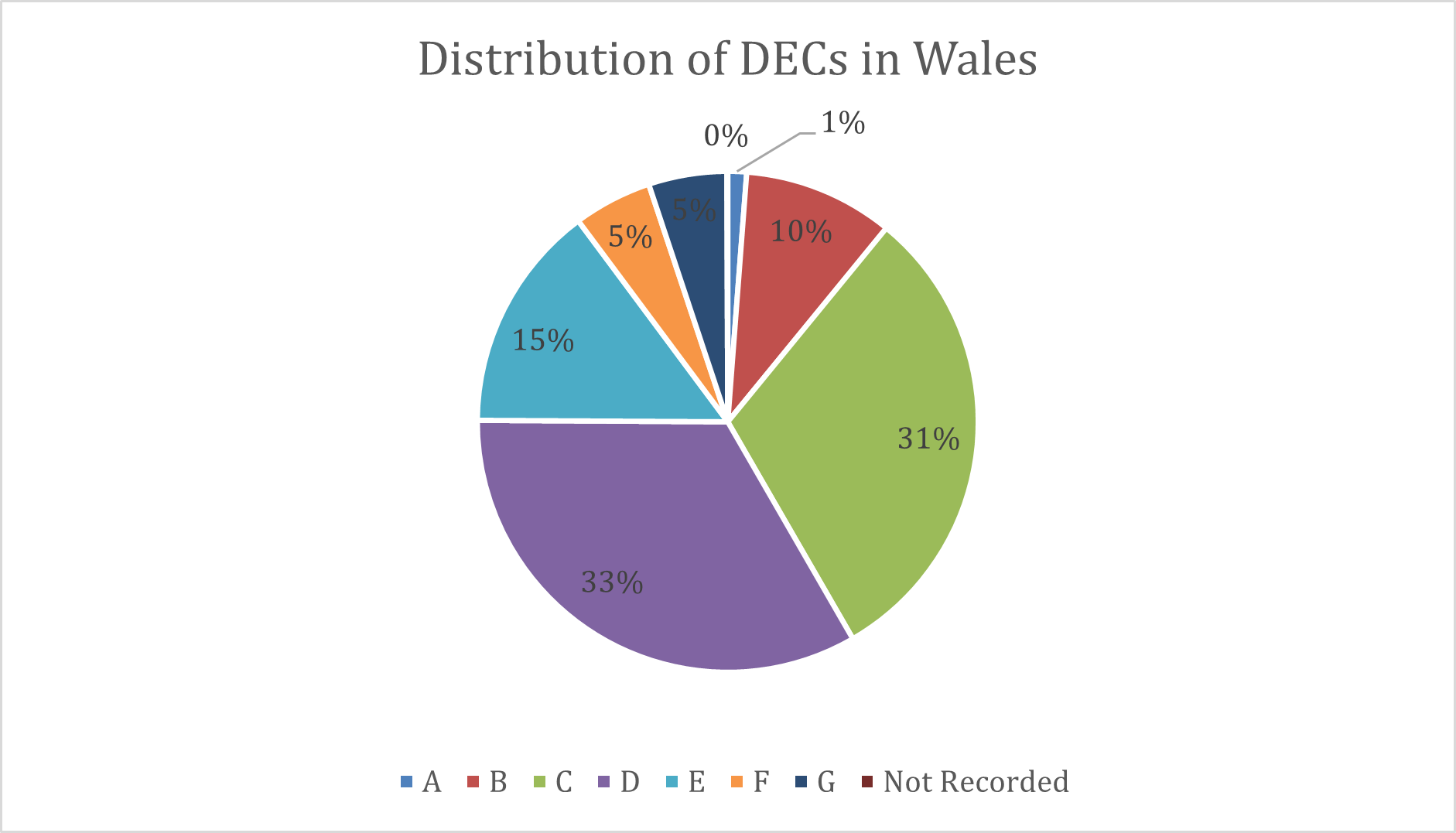

Figure 9. Display Energy Certificates (DECs), 2008 to December 2019, Wales. Percentages by DEC band.

2.III.iv. Implementation of mandatory advertising requirement – status

Wales adopted the same approach as England. See England report for details.

2.IV Smart buildings and building systems

Wales adopted a similar approach as England, where the “Domestic and Non-domestic Building Services Compliance Guide”^17,18 recommend minimum energy efficiency standards.

The guide sets out the minimum energy efficiency standards for fixed building services systems, including:

• space heating;
• domestic hot water;
• mechanical ventilation;
• comfort cooling;
• internal and external lighting;
• low carbon generation of heat by heat-pumps, solar thermal panels, and combined heat & power.

Table 5 shows a summary of minimum standards for residential buildings as an example.

Table 5: Selected examples of minimum standards. Domestic Building Services Compliance Guide, HM Government, 2013 edition – for use in England.

The Approved Documents (ADs)⁵ (for new buildings) include detailed specifications for the “reference building” from which the Target CO₂ Emission Rate is derived. The “reference building” provides typical specifications for the actual building design. Standards higher than the minimum (Table 5) may be required to satisfy Building Regulations for new buildings.

2.IV.i. Status and plans on smart buildings

Please see England report.

2.IV.ii. Regulation of system performance

The commissioning of fixed technical building systems is required by Building Regulations to ensure the actual building performance is as consistent as possible with design intentions. The ADs reference the Domestic and Non‐domestic Building Services Compliance Guides, and industry guidance. Typically, the guides recommend following manufacturer’s instructions, and include information such as the qualifications/accreditation required for commissioning experts.

2.IV.iii. Building Automation and Controls (BACs)

Control of technical building systems are included in the Domestic and Non‐Domestic Building Services Compliance Guides^{17 18}, the ADs⁵, and the Building Regulations. The National Calculation Methodology (NCM) also provides additional benefits for more effective controls.

The ADs⁵ for non‐residential buildings include benefits for installing automatic monitoring of the building’s energy performance and power factor correction equipment. E.g., the calculated Building Emission Rate (BER) may be reduced where management features are provided, which helps the new building to meet the maximum Target Emission Rate (TER). For “automatic monitoring and targeting with alarms for out of range values” the BER may be reduced by 5%.

In the published stage 1 Part L consultation document¹⁹ it has been proposed that if building automation and control systems are installed in new residential buildings, then information about the energy performance of the building automation and control system must be provided to the building owner. The forthcoming stage 2 consultation will provide proposals for existing residential buildings and non-domestic buildings.

2.IV.iv. Status and encouragement of intelligent metering

See England report for details.

2.IV.v. Progress and current status on heating systems (Inspection / Equivalence)

The UK²⁰ adopted alternative measures for heating systems and inspections for AC systems. Wales‐specific programmes include “Nest”¹⁴ and “Arbed”¹⁵ which aim to address fuel poverty. “Nest” also provides access to advice and support. See England report for details.

2.IV.vi. Progress and current status on AC systems (Inspection / Equivalence)

See England report for details.

2.IV.vii. Enforcement and impact assessment of inspections

Enforcement and penalties

 See England report for details.

Quality control of inspection reports

 See England report for details.

Impact assessment

See England report for details.

3. A success story in EPBD implementation

The Welsh Government “Warm Homes” programme, which includes the “Warm Homes Nest” and “Warm Homes Arbed” schemes, is designed to improve the energy efficiency of existing housing, targeting low-income households or those living in the most deprived areas of Wales.

“Warm Homes Nest” is a demand-led fuel poverty scheme. It combines free impartial advice and support to help reduce energy bills with a package of free home energy improvement measures to eligible low-income households living in the most energy inefficient homes.

“Warm Homes Arbed” is a strategic area-based fuel poverty scheme focused on improving the energy efficiency of homes in some of the most deprived areas. Arbed aims to reduce the carbon footprint of Wales’ existing housing stock and, in doing so, provide resilience for households against rising energy costs.

Welsh Government “Warm Homes” programme takes a whole house approach to improving the energy efficiency, making homes more efficient and cheaper to heat. Between 2009 and 2019, more than £327 million (~372 M€) was invested in home energy efficiency improvements through the Warm Homes Programme, benefitting more than 55,000 homes. This investment enabled the provision of advice to more than 129,000 people over the same period.

4. Conclusions, future plans

The UK is divided into four jurisdictions. Historically, England and Wales shared the same Building Regulations. In 2011, Wales became responsible for its own Building Regulations, and the new Welsh Regulations came into force in 2014.

The 2014 Building Regulations in Wales were expected to improve new residential units’ performance by 8% and non‐residential buildings by 20% over the previous standards. A Primary Energy Consumption target for new non‐residential buildings and improved minimum fabric standards for new residential units were introduced with an emphasis on reducing energy demand.

A review of the energy performance requirements within the Building Regulations is ongoing, to consider the next step in the Welsh commitment to improve energy requirements where necessary to deliver NZEB standards at a cost optimal level or better for all building types, with amendments to the Building Regulations expected to come into force in late 2021/ early 2022. The review will also develop proposals to implement the 2018 amendments to the EPBD (2018/844).

Regulations for the Energy Performance of Buildings, including EPCs, cover both England and Wales and remain unchanged.
